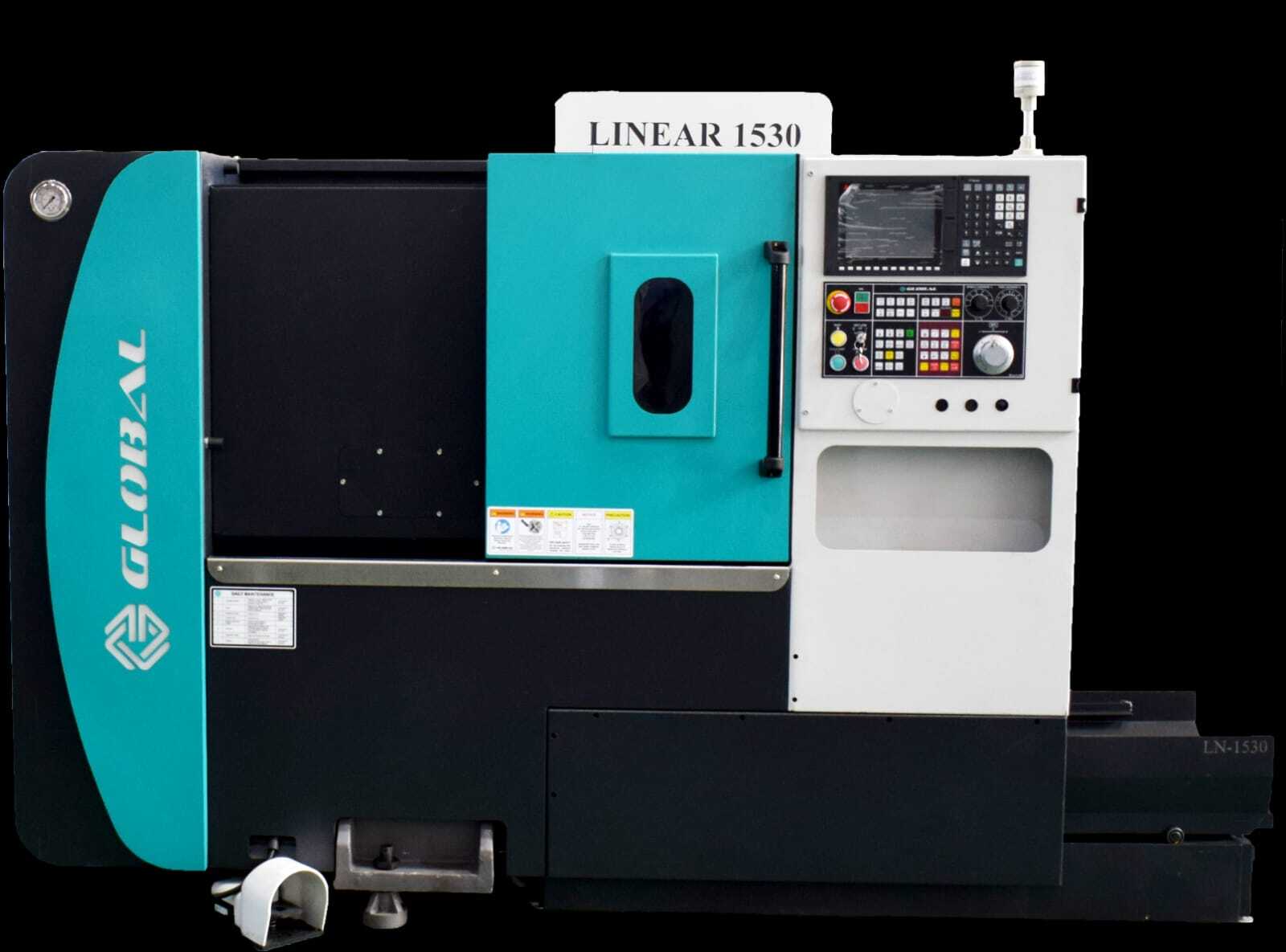

Linear 1530
Features
- Roller Guideway
- Ground Ballscrew with Double Nuts
- FEM Analyzed Machine Structure
- Operator Friendly Design
- Vibration Free Structure
- Elegant Look of Machine
Technical Specifications
Capacity
| Swing Over Bed | mm | 450 |
| Std Turning Dia. | mm | 150 |
| Max. Turning Dia. With Limited Length | mm | 180 |
| Max. Turning Length | mm | 300 |
| Cross (X Axis) Travel | mm | 400 |
| Longitudinal (Z Axis) Travel | mm | 300 |
| Rapid (X & Z Axis) | m/min | 25 |
Slide
| Ball Screw (Z Axis) | mm | 32 x 10 |
| LM Guide (Z Axis) | mm | 35 |
| Ball Screw (X Axis) | mm | 32 x 10 |
| LM Guide (X Axis) | mm | 35 |
Spindle
| Spindle Motor Power (30 Min./Cont) | kW | Siemens 7/10 Fanuc 7.5/11 |
| Spindle Bore | mm | 50 |
| Spindle Nose | A2 5 | |
| Chuck Size | mm | 165 |
| Max. Bar Capacity | mm | 38 |
| Spindle Speed Range | RPM | 50-3500 |
| Spindle Inner Size | mm | Straight Bore Ø 50 |
Tool Block
| No. of Tool For Std. Job Dia. Range | 3 | |
| Max. Boring Bar Diameter | mm | Ø 40 |
| Tool Size (Cross – Section) | mm | 25 x 25 |
Accuracy
| Positioning Accuracy | mm | 0.010 |
| Repeatability | mm | 0.006 |
Other Data
| Dimensions (L X W X H) | mm | 2500 x 1600 x 1875 |
| Weight (Approx) | kg | 2450 |
Standard Accessories
- Roller Type Guideways
- Ground Ballscrew With Doublenut
- Foot Switch
- Axial Tool Holders
- Boring Tool Holders
- Hydraulic Chuck With Actuating Cylinder
- Radial Tool Holder
- Patrol Light
Optional Accessories
- Auto Door
- Stabilizer
- Chip Conveyor
- Hydraulic Collet Chuck
- Bar Feed System
- All Possible Customization
Control System Accessories
- RS-232 Serial Interface Port
- Feed Rate Override
- Manual Data Input
- 2 Axis Simultaneous
- Circular Interpolation
- Thread Cutting Cycle
- Electronic Hand Wheel
- Tool Nose Radius Compensation
- Constant Surface Speed Control
- Part Programming Storage And Editing
