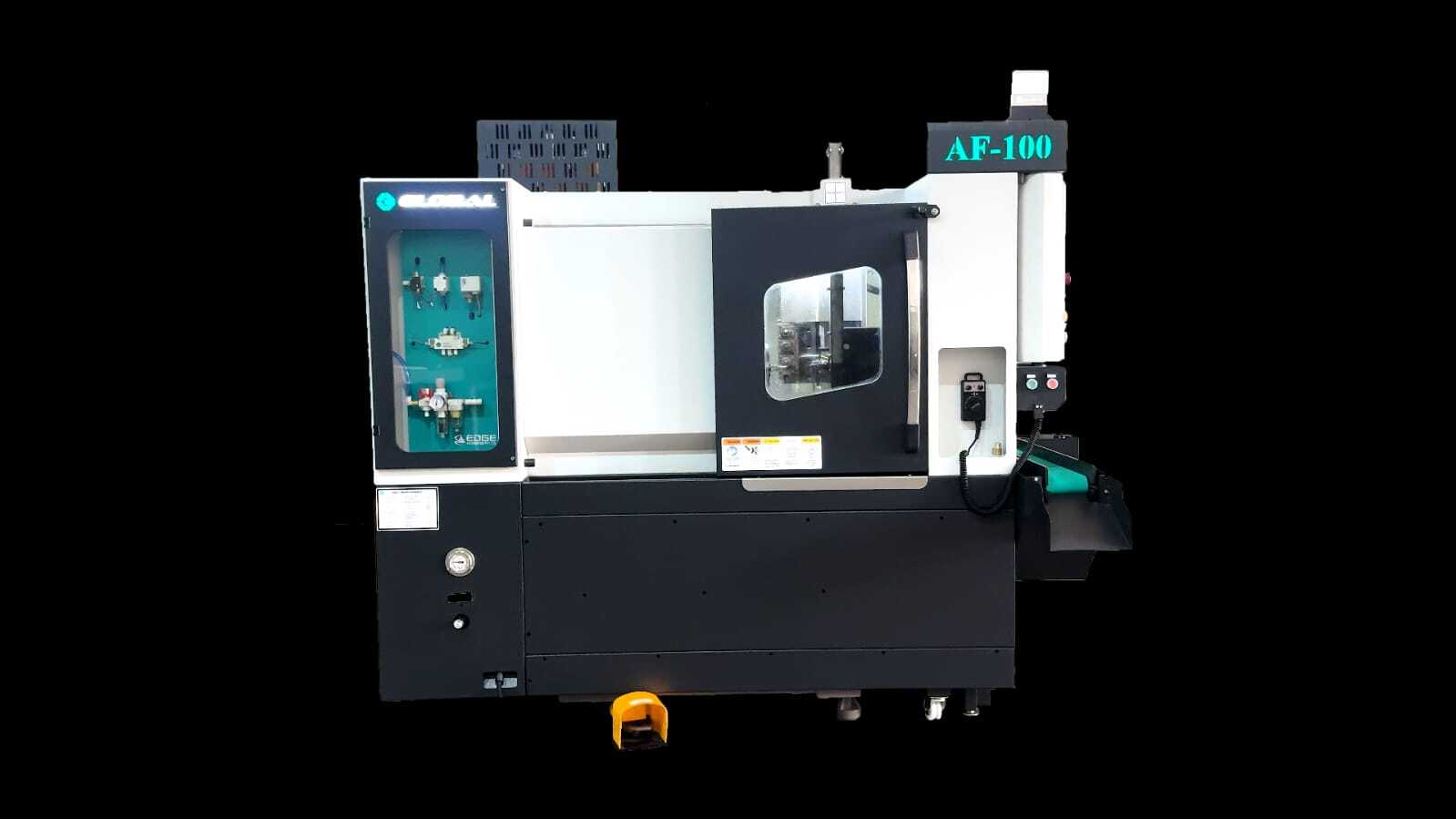

AF 80/100

Features

  • High Productivity by providing automatic Work Piece Transfer
  • Compact Machine Size, Saves approx. 25% of Space
  • High Efficiency & Accuracy
  • Low Vibration
  • FEM Analysed Machine Structure
  • Linear block adjustment
  • Pick & place system
  • Easy Chip Removal

Technical Specifications

Capacity
MODEL Unit AF 80 AF 100
Swing Over Bed mm 300 300
Max. Turning Diameter mm 80 100
Max. Turning Length mm 50 50
Cross X axis Travel mm 500 500
Longitudinal Z axis Travel mm 200 200
Rapid ( X & Z Axis ) m/min 25 25
Slide
MODEL Unit AF 80 AF 100
Ball Screw (Z Axis) mm Dia 32 x 10 pitch Dia 32 x 10 pitch
LM Guide (Z Axis) mm 35 35
Ball Screw (X Axis) mm Dia 32 x 10 pitch Dia 32 x 10 pitch
LM Guide (X Axis) mm 35 35
Spindle
MODEL Unit AF 80 AF 100
Spindle Motor Power kW Siemens 828D 3.7/5.5
Fanuc 3.7/5.5
Siemens 828D 5.5/7.5
Fanuc 5.5/7.5
Spindle Bore mm 40 50
Spindle Nose A2_4 A2_5
Chuck Size mm 165 165
Max. Bar Capacity mm 28 38
Spindle Speed Range RPM 50-4000 50-3500
Full Power Range RPM 1000 – 4000 1000-3500
Tool Block
MODEL Unit AF 80 AF 100
No. of Tool For Std. Job Dia. Range 4 3
Tool Size (Cross – Section) mm 25 x 25 25 x 25
Boring Bar Diameter mm Ø 32 Ø 32
Accuracy
MODEL Unit AF 80 AF 100
Positioning Accuracy mm 0.010 0.010
Repeatability mm 0.006 0.006
OTHER DATA
MODEL Unit AF 80 AF 100
Dimensions (L x W x H) mm 2670 x 2000 x 1715 2670 x 2000 x 1715
Basic Machine Weight (Approx.) kg 2500 3000

Standard Accessories

  • Roller Type Guideways
  • Ground Ball Screw with Double Nuts
  • Foot Switch
  • Axial Tool Holders
  • Boring Tool Holders
  • Hydraulic Chuck with Actuating Cylinders
  • Radial Tool Holder
  • Patrol Light
  • Pneumatic Pick & Place

Optional Accessories

  • Power Head (Turning & Milling)
  • Online Measurement System
  • Mechanical Arm System
  • Bowl Feeder
