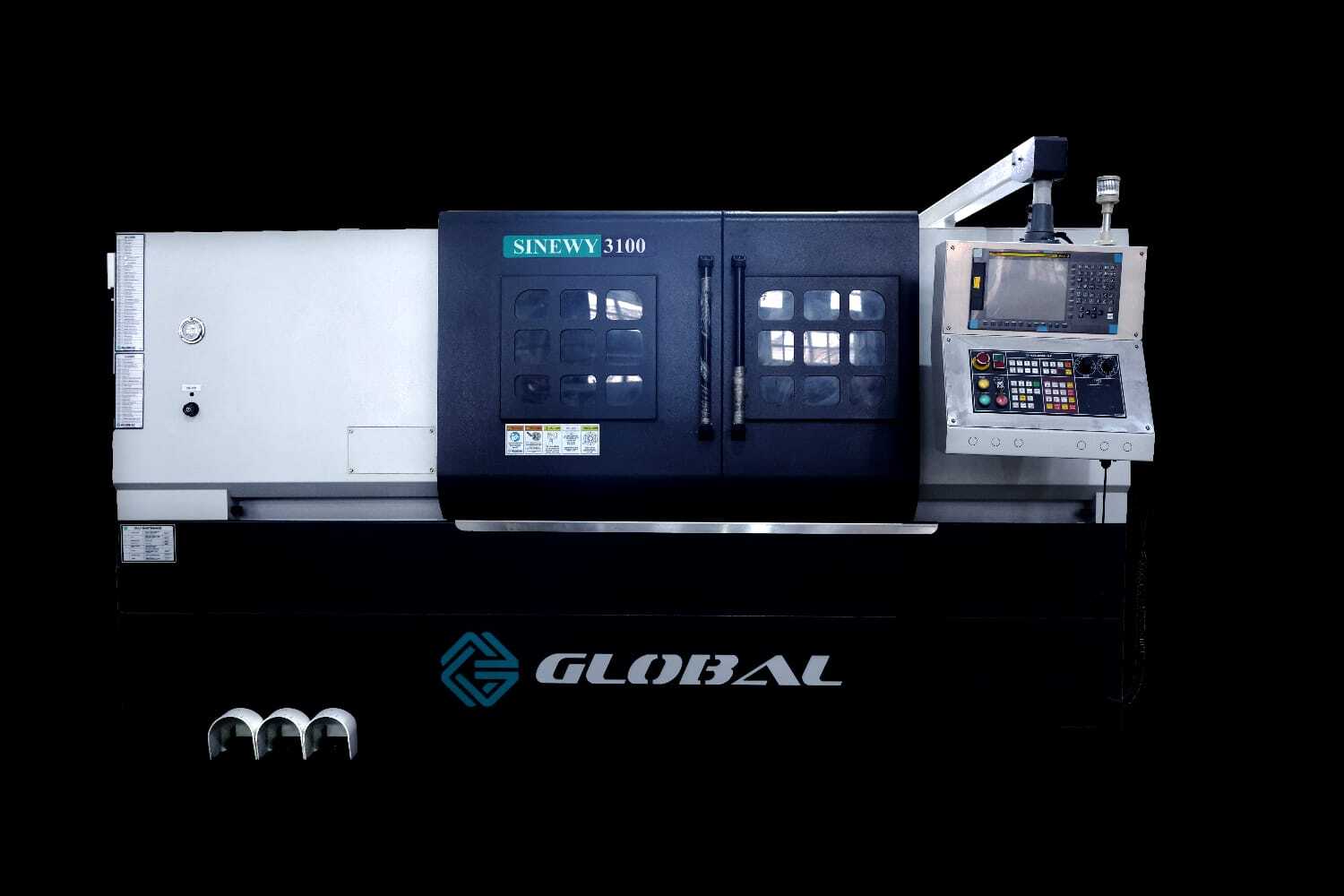

Sinewy 3075/3100

Features

  • Roller Type Guideways
  • Ground Ballscrew with Double Nuts
  • FEM Analyzed Machine Structure
  • Operator Friendly Design
  • Vibration Free Structure
  • Elegant Look of Machine

Technical Specifications

Capacity
MODEL Unit SINEWY 3075 SINEWY 3100
Swing Over Bed mm 550 550
Max. Turning Dia. mm 490 490
Max. Turning Dia. With Limited Length mm 490 490
Max. Turning Length mm 750 1000
Cross (X Axis) Travel mm 265 265
Longitudinal (Z Axis) Travel mm 750 1000
Rapid (X & Z Axis) m/min 25 25
Slide
MODEL Unit SINEWY 3075 SINEWY 3100
Ball Screw (Z Axis) mm 40 x 10 40 x 10
LM Guide (Z Axis) mm 45 45
Ball Screw (X Axis) mm 32 x 10 32 x 10
LM Guide (X Axis) mm 35 35
Spindle
MODEL Unit SINEWY 3075 SINEWY 3100
Spindle Motor Power (30 Min./Cont) kW Siemens 12/16
Fanuc 11/15
Siemens 12/16
Fanuc 11/15
Spindle Bore mm A2_8 A2_8
Spindle Nose A2 8 A2 8
Chuck Size mm 305 305
Max. Bar Capacity mm 73 73
Spindle Speed RPM 2000 2000
Spindle Inner Size mm Straight Bore Ø 86 Straight Bore Ø 86
Turret
MODEL Unit SINEWY 3075 SINEWY 3100
No. of Stations 8 8
Max. Boring Bar Diameter mm Ø 40 Ø 40
Tool Size (Cross – Section) mm 25 x 25 25 x 25
Tailstock
MODEL Unit SINEWY 3075 SINEWY 3100
Quill Diameter mm 100 100
Quill Stroke mm 125 125
Accuracy
MODEL Unit SINEWY 3075 SINEWY 3100
Positioning Accuracy mm 0.010 0.010
Repeatability mm 0.006 0.006
Other Data
MODEL Unit SINEWY 3075 SINEWY 3100
Dimensions (L x W x H) mm 3275 x 2000 x 1950 3650 x 2000 x 1950
Weight (Approx.) kg 4200 4800
