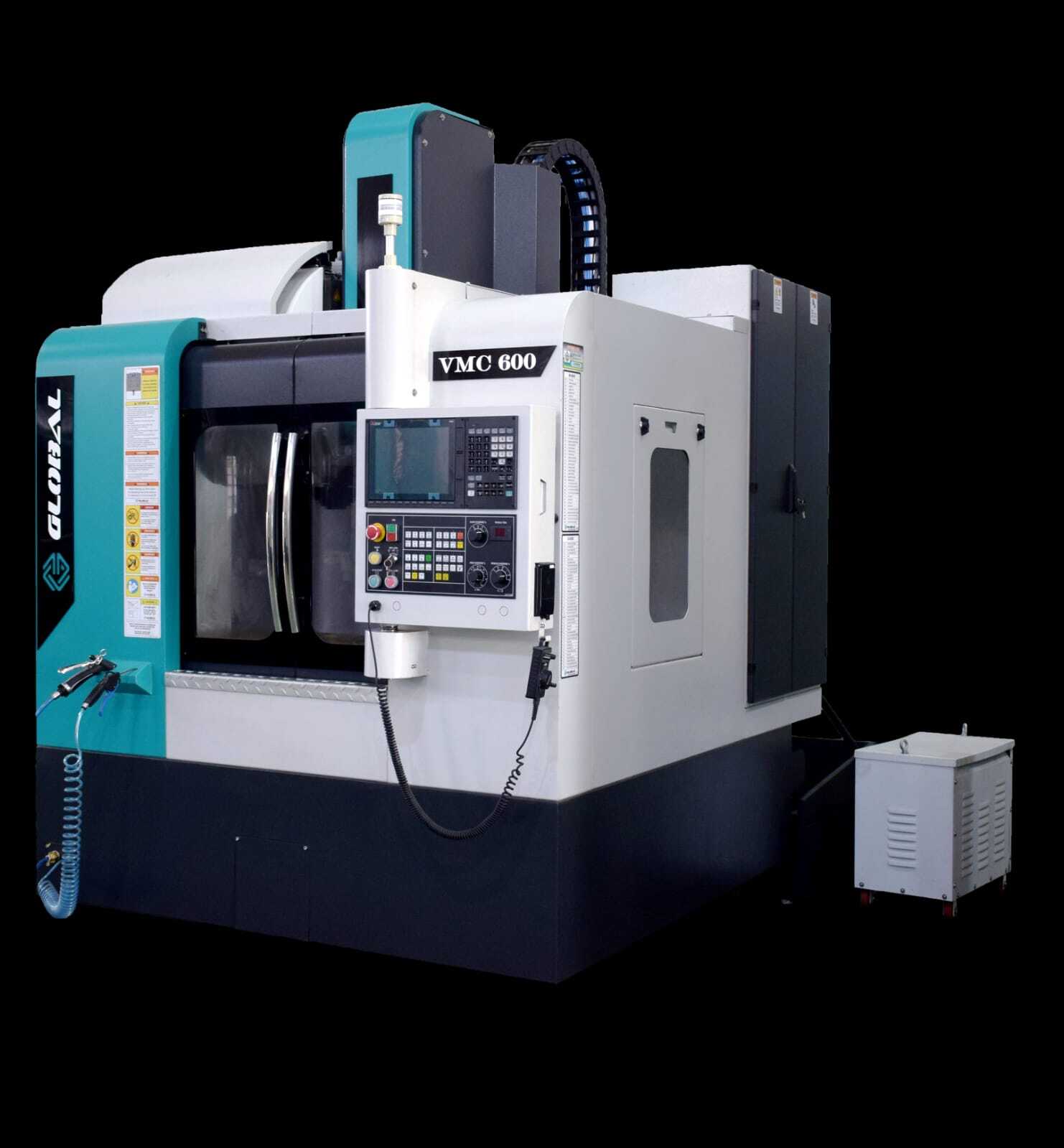

VMC 600


  • Broader Column Structure
  • Higher stability with wide base
  • Finite Element Analyzed Machine Structure
  • Table with high load carrying capacity
  • Roller Guide ways for higher load capacity
  • Ergonomic Design
  • Electronic Counter balance
  • Manual & Auto Coolant System
  • Centralized Automatic Lubrication
  • Easy Chip Evacuation

Technical Specifications

X Axis mm 600
Y Axis mm 400
Z Axis mm 400
Table Top to Spindle Face mm 100 to 500
Distance from floor to table mm 950
Spindle Center – Column front distance mm 500
Table Size mm 810 x 440
Table Slot (No./Size/Pitch) mm 3/18/125
Max. Load on table kg 400
Spindle Power Standard
Max. Spindle Speed RPM 8000
Spindle Nose BT-40
Bearing Diameter mm 60
Spindle Power
(Cont./S6-40 % rating )
kW Siemens 5.5/7.5
Spindle Power
(Cont./30 min rating)
kW Fanuc 5.5/7.5
Spindle Power
(Cont./30 min rating)
kW Mitshubishi 5.5/7.5
Rapid Traverse (X-Y-Z) m/min 25
Cutting Feed Rate (X-Y-Z) m/min 10
ATC (Automatic Tool Change)
Tool Capacity nos. 24
Max. Tool Dia.(with Adj. tool) mm 80
Max. Tool Dia. (without Adj. Tool) mm 150
Max. Tool Length mm 250
Max. Tool Weight kg 8
Positioning Accuracy mm 0.010
Repeatability mm 0.005
Other Data
Dimensions (L X W X H) mm 2700 x 1850 x 2600
Machine Weight kg 4500

Standard Accessories

  • AC variable speed spindle motor
  • Automatic tool changer (24 tools)
  • Basic Coolant system with chip tray
  • Manual Pulse generator
  • Centralized automatic lubrication
  • Panel air Conditioner
  • Air gun
  • Spindle taper air blow
  • Ring coolant around spindle
  • Maintenance tool kit
  • Rear Chip disposal

Optional Accessories

  • Chip conveyer in lieu of chip tray
  • High pressure coolant through spindle
  • CNC rotary axis as 4th axis / indexing
  • Voltage Stabilizer
  • Edge fnder
  • Optical Scale
  • Automatic Front Door
  • Chiller Unit
  • Prob for tool offset and job offset
