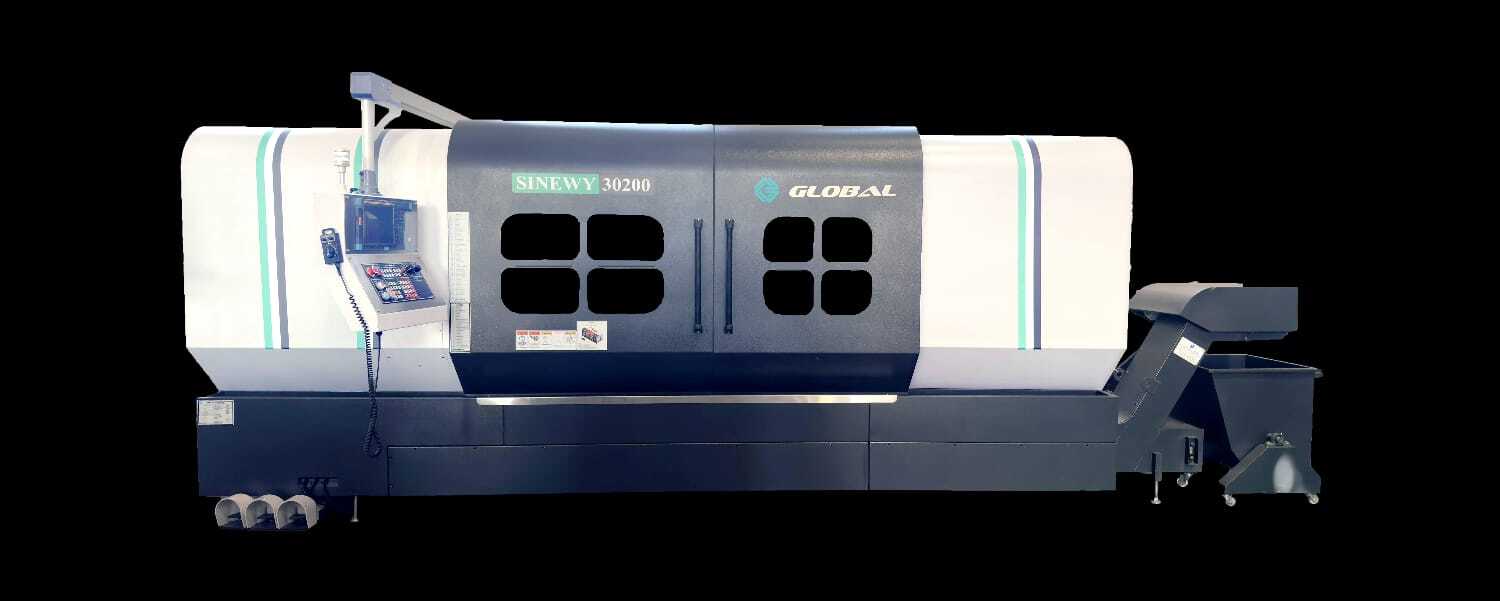

Sinewy 30150/30200

Features

  • 45 degree slant bed
  • Roller Type Guide ways
  • Ground Ball screw with Double Nuts
  • FEM Analyzed Machine Structure
  • Optimized Rigidity
  • Operator Friendly Design
  • Vibration free structure
  • Elegant look of machine
Watch Video
Download Brochure
Ask for Information

Technical Specifications

Capacity
MODEL Unit SINEWY 30150 SINEWY 30200
Swing Over Bed mm 700 700
Std Turning Diameter mm 300 310
Max. Turning Dia. With Limited Length mm 610 610
Max. Turning Length (Std. Chuck Face to Tool Disk Face) mm 1500 2000
Cross (X Axis) Travel mm 320 320
Longitudinal (Z Axis) Travel mm 1550 2050
Rapid (X & Z Axis) m/min 25 25
Slide
MODEL Unit SINEWY 30150 SINEWY 30200
Ball Screw (Z Axis) mm 50 x 10 50 x 10
LM Guide (Z Axis) mm 45 45
Ball Screw (X Axis) mm 40 x 10 40 x 10
LM Guide (X Axis) mm 45 45
Spindle
MODEL Unit SINEWY 30150 SINEWY 30200
Spindle Motor Power (30 Min./Cont) kW 18.5/15 18.5/15
Spindle Motor Power
(30 Min./Cont) (Fanuc)		 kW 18.5/15 18.5/15
Spindle Bore mm 86 86
Spindle Nose A2 – 8 A2 – 8
Chuck Size mm 305 305
Max. Bar Capacity mm 90 90
Spindle Speed Range RPM 50-1500 50-1500
Full Power Speed Range RPM – 500-1500
Fanuc Torque (Cont.) Nm 262.625 262.625
Fanuc Torque upto (Max.) Nm 423.5 423.5
Siemens Torque (Cont.) Nm 423.5 423.5
Siemens Torque upto (Max.) Nm 783.75 783.75
Turret
MODEL Unit SINEWY 30150 SINEWY 30200
No. of Stations 8 8
Max. Boring Bar Diameter mm Ø 50 Ø 50
Tool Size (Cross – Section) mm 25 x 25 25 x 25
Tailstock
MODEL Unit SINEWY 30150 SINEWY 30200
Quill Diameter mm 100 100
Quill Stroke mm 125 125
Accuracy
MODEL Unit SINEWY 30150 SINEWY 30200
Positioning Accuracy mm 0.020 0.020
Repeatability mm 0.008 0.008
Other Data
MODEL Unit SINEWY 30150 SINEWY 30200
Dimensions (L x W x H) mm 4100 x
2650 x 2200		 4800 x
2650 x 2200
Basic Machine Weight (Approx.) kg 6800 7200
