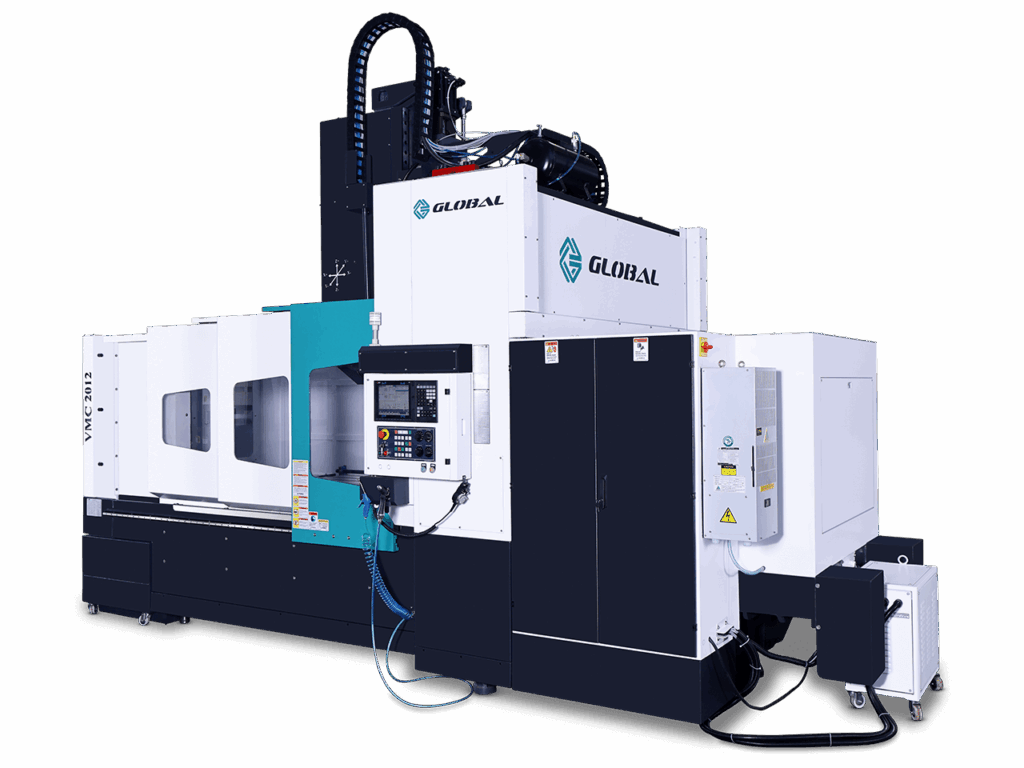

DCM 2012
Features
- Highly rigid double column design
- Higher stability with wide base
- Suitable for high speed machining & hard part machining
- Roller guideways for higher load capacity
- Minimum overhang spindle for better performance
- Easy job handling with widely open door area
- Easy chip removal
- User friendly design
Technical Specifications
Capacity
| X Axis | mm | 2000 |
| Y Axis | mm | 1200 |
| Z Axis | mm | 750 |
| Table Top to Spindle Face | mm | 150 to 900 |
| Distance between column | mm | 1340 |
| Spindle Center – column front distance | mm | - |
Table
| Table Size | mm | 2100 x 1200 |
| Table Slot (No./Size/Pitch) | mm | 22x7x125 |
| Max. Load on table | kg | 4000 |
| Floor to Table Top | mm | 945 |
Spindle Power Standard
| Max. Spindle Speed | RPM | 6000 |
| Spindle Nose | - | BT-50 |
| Bearing Diameter | mm | 100 |
| Spindle Power (Cont./56–40 % rating) (Siemens) | kW | 18.5/15 |
| Spindle Power (Cont./30 min rating) (Fanuc) | kW | 18.5/15 |
| Spindle Power (Cont./30 min rating) (Mitsubishi) | kW | 18.5/15 |
| Fanuc Torque (Cont.) | Nm | 95.5 |
| Fanuc Torque upto (Max.) | Nm | 154 |
| Siemens Torque (Cont.) | Nm | 118 |
| Siemens Torque upto (Max.) | Nm | 308 |
FEED RATE
| Rapid Traverse (X-Y-Z) | m/min | 20/20/15 |
| Cutting Feed Rate (X-Y-Z) | m/min | 10 |
ATC (Automatic Tool Change)
| Tool Capacity | nos. | 20 |
| Max. Tool Dia.(with Adj. tool) | mm | 110 |
| Max. Tool Dia. (without Adj. Tool) | mm | 200 |
| Max. Tool Length | mm | 350 |
| Max. Tool Weight | kg | 25 |
Accuracy
| Positioning Accuracy (±) | mm | 0.020 |
| Repeatability (±) | mm | 0.008 |
Other Data
| Height | mm | 4365 |
| Floor Scale (W x L) | mm | 5600 x 3400 |
| Machine Weight (Approx.) | kg | 16000 |
Standard Accessories
- Automatic tool changer ( 20 tools)
- Basic coolant system with chip tray
- Manual pulse generator
- Centralised automatic lubrication
- Panel air conditioner
- Full machine guard
- Air gun
- Spindle taper air blow
- Maintenance tool kit
- Chip Flushing
- Screw Conveyor
Optional Accessories
- Chip conveyer in lieu of chip tray
- High pressure coolant through spindle
- CNC rotary axis as 4th axis / indexing
- Coolant gun
- Voltage stabilizer
- Edge finder
- Automatic Door
- Chiller Unit
- Prob for tool offset and job offset
