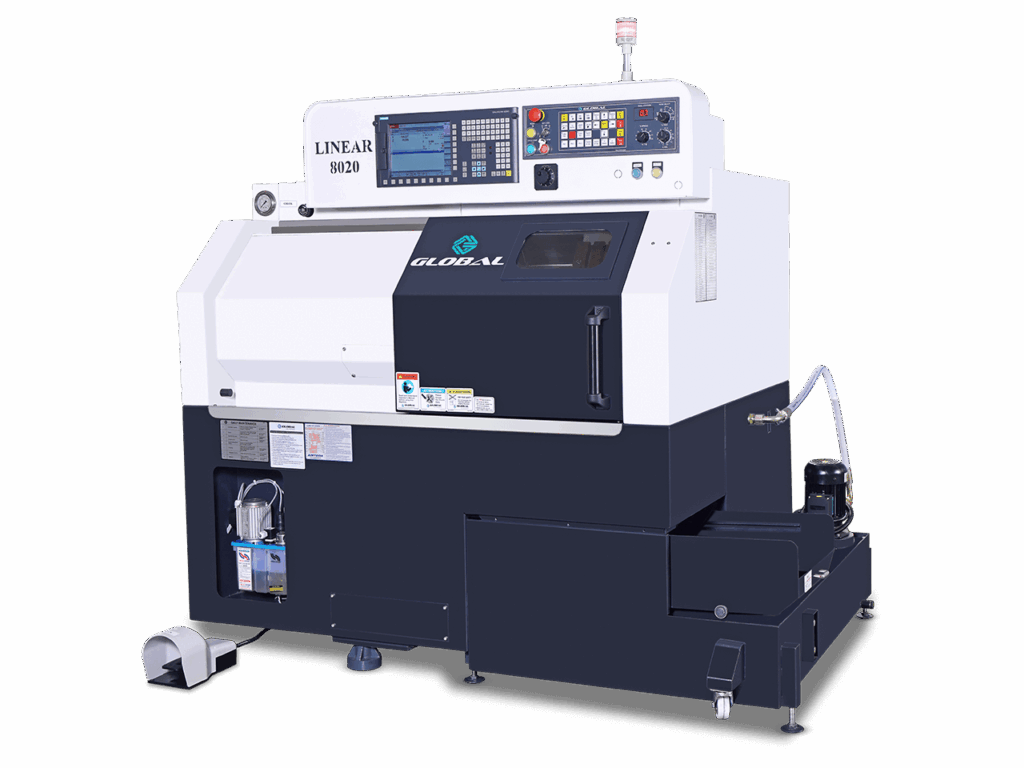

Linear 8020

Features

  • Roller Guideway
  • Ground Ballscrew with Double Nuts
  • FEM Analyzed Machine Structure
  • Operator Friendly Design
  • Vibration Free Structure
  • Elegant Look of Machine
Watch Video
Download Brochure
Ask for Information

Technical Specifications

Capacity
Swing Over Bedmm400
Std Turning Dia.mm80
Max. Turning Dia. With Limited Lengthmm120
Max. Turning Length (Std. Chuck Face to Tool Disk Face)mm200
Cross (X Axis) Travelmm280
Longitudinal (Z Axis) Travelmm200
Rapid (X & Z Axis)m/min25
Ball Screw (Z Axis)mm25 x 10
LM Guide (Z Axis)mm25
Ball Screw (X Axis)mm25 x 10
LM Guide (X Axis)mm25
Spindle Motor Power (30 Min./Cont) (SiemenskW 5.5/3.7
Spindle Motor Power (30 Min./Cont) (Fanuc)kW  5.5/3.7
Spindle Boremm40
Spindle NoseA2-4
Chuck Sizemm165
Max. Bar Capacitymm28
Spindle Speed RangeRPM50-4000
Full Power Speed RangeRPM-
Fanuc Torque (Cont.)Nm26.55
Fanuc Torque upto (Max.)Nm78.75
Siemens Torque (Cont.)Nm35.25
Siemens Torque upto (Max.)Nm70.5
No. of Stations-
Max. Boring Bar Diametermm-
Tool Size (Cross - Section)mm-
Quill Diametermm-
Quill Strokemm-
Positioning Accuracymm0.010
Repeatabilitymm0.006
L X W X Hmm2000 x 1475 x 1975
Weight (Approx)kg1850

Standard Accessories

  • Roller Type Guideways
  • Ground Ballscrew With Doublenut
  • Foot Switch
  • Axial Tool Holders
  • Boring Tool Holders
  • Hydraulic Chuck With Actuating Cylinder
  • Radial Tool Holder
  • Patrol Light

Optional Accessories

  • Auto Door
  • Stabilizer
  • Chip Conveyor
  • Hydraulic Collet Chuck
  • Bar Feed System
  • All Possible Customization

Control System Accessories

  • RS-232 Serial Interface Port
  • Feed Rate Override
  • Manual Data Input
  • 2 Axis Simultaneous
  • Circular Interpolation
  • Thread Cutting Cycle
  • Electronic Hand Wheel
  • Tool Nose Radius Compensation
  • Constant Surface Speed Control
  • Part Programming Storage And Editing
