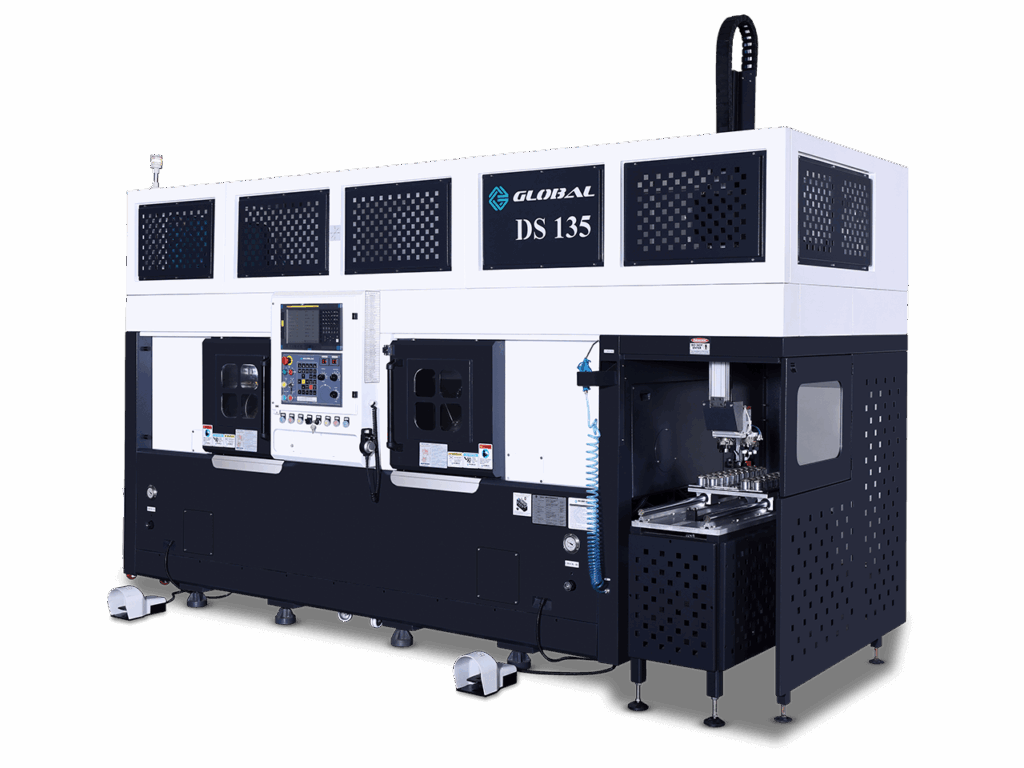

DS 135G
Features
- Twin spindle chucker with 3 axis gantry robot.
- Twin turret with 8-station on each.
- Un-manned loading to unloading operations.
- Auto feeder and change over station available.
- Job measuring System, Cleaning System & orientation unit available
- Hydraulic chucking on both spindles.
- Centralized & programmable lubrication.
- Electrical panel with A.C.
- Electrical panel with A.C.
Technical Specifications
Capacity (Basic Machine)
| Max Swing over Bed | mm | 350 |
| Max. Turning Dia. without loader | mm | 135 |
| Max. Turning length without loader | mm | 250 |
| Cross X1 & X2 Axis Travel | mm | 100 + 100 |
| Longitudinal Z1 & Z2 Axis Travel | mm | 250 + 250 |
| Rapid (X & Z Axis) | mm | 25 |
Capacity (Gantry Robot)
| Max. Clamping Dia. | mm | 80 |
| Max. Clamping Length | mm | 50 |
| Max. Part Weight (Each Components) | kg | 1(2) |
| Loader XL Axis Stroke | mm | 795 |
| Max. Speed (XL & ZL Axis) | m/min | 100 |
| Loader ZL Axis Stroke | mm | 2855 |
| Std. Loading Time | sec | - |
Part Stocker
| YL-axis stroke | mm | 570 |
| Max. Speed | m/min | 20 |
Slide
| Z-Axis Ball Screw | mm | Dia. 32 x 10 pitch |
| LM Guide Z-Axis | mm | 35 |
| X-Axis Ball Screw | mm | Dia. 32 x 10 pitch |
| LM Guide X-Axis | mm | 35 |
Spindle (2 Nos.)
| Spindle Motor Power (Cont. / 30min.) | kW | 3.7/5.5 |
| Spindle Bore | mm | 40 |
| Spindle Nose | - | A2~4 |
| Chuck Size OP10 | mm | 165 |
| Chuck Size OP20 | mm | 165 |
| Max. Bar Capacity | mm | 28 |
| Spindle Speed Range | RPM | 50-4000 |
| Full Power Speed Range | RPM | 1000-2500 |
Turret
| No. Of Turret | No. | 2 |
| No. of Tool Stations | No | 8 |
| Tool Size | mm | 20 x 20 |
| Boring Bar Dia. | mm | 32 |
Accuracy
| Positioning Accuracy | mm | 0.010 |
| Repeatability | mm | 0.006 |
Other Data
| Dimensions ( L x W x H ) | mm | 4200 x 2000 x 3000 |
| Weight | kg | 5000 (approx.) |
Standard Accessories
- Roller Type Guideways
- Ground Ball Screw with Double Nuts
- Foot Switch
- Axial Tool Holders
- Boring Tool Holders
- Hydraulic Chuck with Actuating Cylinders
- Radial Tool Holder
- Patrol Light
- Pneumatic Pick & Place
Optional Accessories
- Power Head (Turning & Milling)
- Online Measurement System
- Mechanical Arm System
- Bowl Feeder
