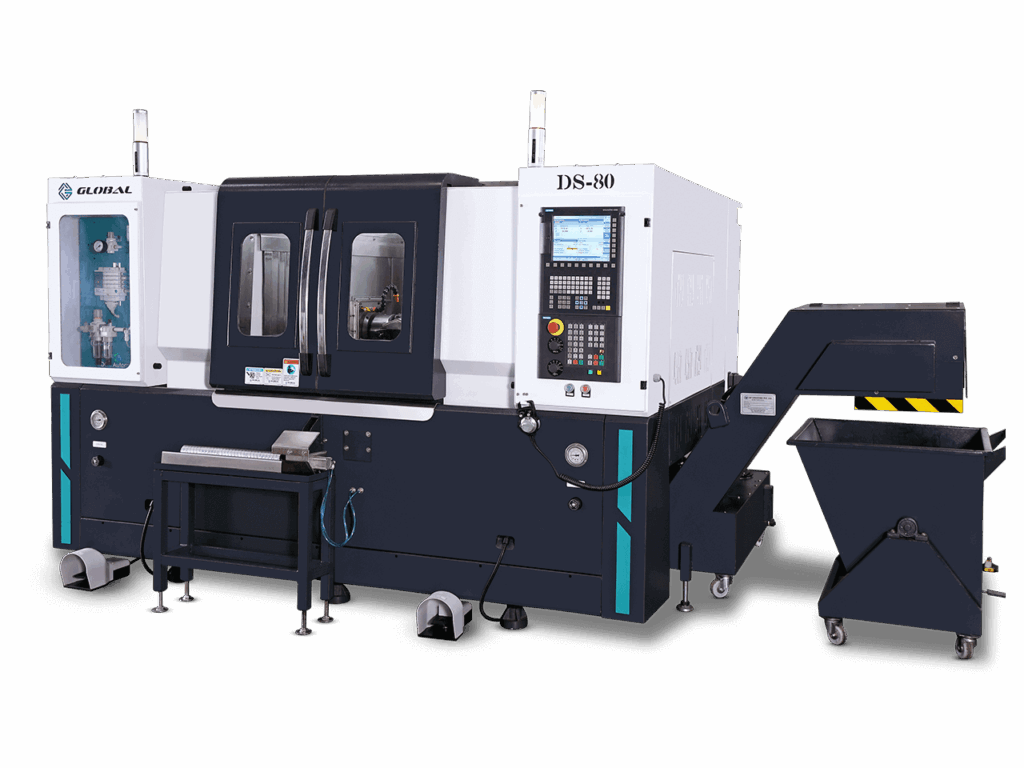

DS 80/100
Features
- Twin spindle chucker with 3 axis gantry robot.
- Twin Tool Block System
- Un-manned loading to unloading operations.
- Auto feeder and change over station available.
- Job measuring System, Cleaning System & orientation unit available
- Hydraulic chucking on both spindles.
- Centralized & programmable lubrication.
- Electrical panel with A.C.
- Fully tooled up solution to meet customer need
Technical Specifications
Capacity (Basic Machine)
| Swing Over Bed | mm | 450 |
| Std. Turning Dia. | mm | 150 |
| Max. Turning Length | mm | 150 |
| Cross X1 & X2 Axis Travel | mm | 185 |
| Longitudinal Z1 & Z2 Axis Travel | mm | 300 |
| Rapid (X & Z Axis) | m/min | 25 |
Capacity (Gantry Robot)
| Max. Clamping Dia. | mm | 120 |
| Max. Clamping Length | mm | 60 |
| Max. Part Weight (Each Component) | mm | 2 |
| Max. Speed Z Axis | mm | 160 |
| Max. Speed X Axis | mm | 100 |
Slide
| Z-Axis Ball Screw | mm | Dia.32 x 10 pitch |
| LM Guide Z-Axis | mm | 35 |
| X-Axis Ball Screw | mm | Dia.32 x 10 pitch |
| LM Guide X-Axis | mm | 35 |
Spindle (2 Nos.)
| Spindle Motor Power (Cont. / 30min.) | kw | Slemens 9/12| FANUC 7.5/11 |
| Spindle Bore | mm | 56 |
| Spindle Nose | - | A2_5 |
| Chuck Size OP10 | mm | 165 |
| Chuck Size OP20 | mm | 165 |
| Max. Bar Capacity | mm | 42 |
| Spindle Speed Range | rpm | 50-3500 |
| Full Power Speed Range | rpm | 1000-3500 |
TURRET (8 Nos.)
| Max. Boring Bar Dia. | mm | ⌀40 mm |
| Axial Tool Size | mm | 25 X 25 |
Other Data
| Height | mm | 3500 |
| Floor Scale ( L x W ) | mm | 5000 X 2850 |
| Basic Machine Weight (Approx.) | kg | 5000 |
Standard Accessories
- Roller Type Guideways
- Ground Ball Screw with Double Nuts
- Foot Switch
- Axial Tool Holders
- Boring Tool Holders
- Hydraulic Chuck with Actuating Cylinders
- Radial Tool Holder
- Patrol Light
- Pneumatic Pick & Place
Optional Accessories
- Power Head (Turning & Milling)
- Online Measurement System
- Mechanical Arm System
- Bowl Feeder
