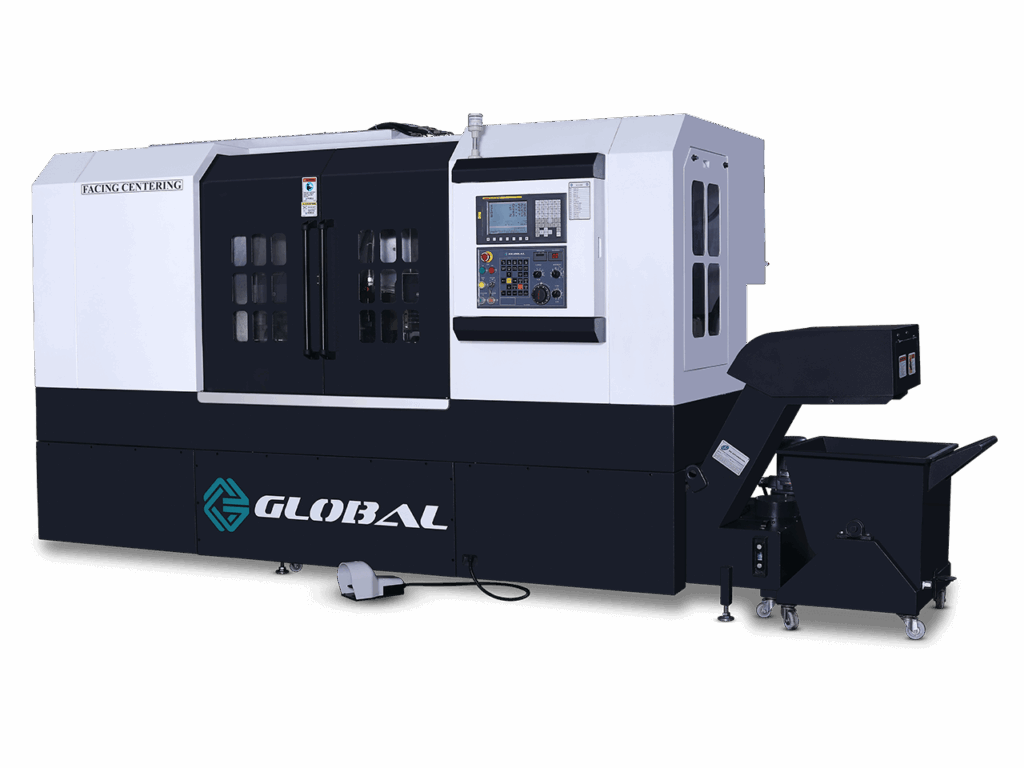

Facing Centering 1100

Features

  • Four axis controller based machine (Siemens / Fanuc)
  • BT-40 and BT-50 Cartridge Spindle
  • 90 degree concept for easy loading and unloading
  • Easy chip removal
  • Total workpiece length accuracy +/-0.025
  • Workpiece face runout accuracy 0.020 @Dia. 100mm
  • Workpiece centering depth accuracy +/-0.015
  • Hydraulic self centeric wise for job holding
  • Roller Guideways
  • Full machine guard
Download Brochure
Ask for Information

Technical Specifications

Capacity
Max. Facing Diametermm100
Max. Drilling Diametermm25
Component Lengthmm150 to 1000 mm
Drilling Slide Rapid Ratem/min.25
Milling Slide Rapid Ratem/min25
 Milling Spindle Nose- BT-40
 Drilling Spindle Nose- BT-40
A.C Induction Spindle Motor Power-2Nos.KW5.5
 Nos. of Spindle-4
 Milling Spindle Speedrpm 500-2000
  Drilling Spindle Speedrpm  500-2000
 Milling Spindle Nose- BT-50
 Drilling Spindle Nose- BT-40
A.C Induction Spindle Motor Power-2Nos.KW7.5
 Nos. of Spindle-4
 Milling Spindle Speedrpm 500-2000
 Drilling Spindle Speedrpm 500-2000
Number of Axis-4
Servo Motor (Milling Axis)Nm12
Servo Motor (Drilling Axis)Nm8
LM Guideways (Milling Axis)mm35
LM Guideways (Drilling Axis)mm45
All axis Ball screwmm32 X 10
Positioningmm0.015
Repeatabilitymm±0.005 mm
Heightmm2200
Floor Scale ( L x W )mm6300 x 2000
Basic Machine Weight (Approx.)kg6500

Standard Accessories

  • Servo Motor With Incremental Encoder
  • Cartridge Type Spindle
  • Hydraulic Powerpack With 1.5 HP Motor
  • Centralized And Programmable Lubrication
  • Self Centering Type Clamping Device
  • Auto Coolant

Optional Accessories

  • Auto Door
  • Patrol Light
  • Stabilizer
  • Chip Conveyor
  • All Possible Customization

Control System Accessories

  • RS-232 Serial Interface Port
  • Feed Rate Override
  • Manual Data Input
  • 2 Axis Simultaneous
  • Circular Interpolation
  • Thread Cutting Cycle
  • Electronic Hand Wheel
  • Constant Surface Speed Control
  • Part Programming Storage and Editing
  • Direct Drawing Dimension Programmimg
