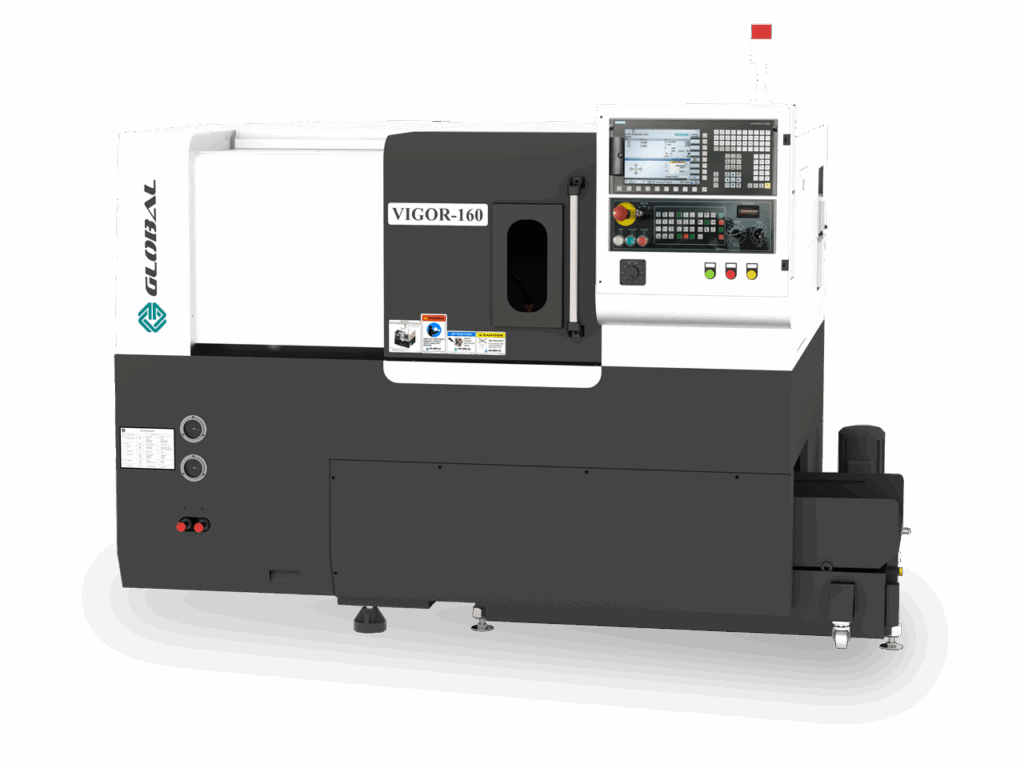

Vigor 160

Features

  • Ball Type Guideways
  • Ground Ballscrew with Double Nuts
  • FEM Analyzed Machine Structure
  • Operator Friendly Design
  • Vibration Free Structure
  • Elegant Look of Machine
Watch Video
Download Brochure
Ask for Information

Technical Specifications

Capacity
Swing Over Bedmm370
Std Turning Dia.mm160
Max. Turning Dia. With Limited Lengthmm350
Max. Turning Length (Std. Chuck Face to Tool Disk Face)mm300
Cross (X Axis) Travelmm185
Longitudinal (Z Axis) Travelmm300
Rapid (X & Z Axis)m/min25
Ball Screw (Z Axis)mm32 x 10
LM Guide (Z Axis)mm35
Ball Screw (X Axis)mm32 x 10
LM Guide (X Axis)mm35
Spindle Motor Power (30 Min./Cont)kW10/7
Spindle Motor Power (30 Min./Cont) (Fanuc)kW11/7.5
Spindle Boremm55
Spindle NoseA2-5
Chuck Sizemm165
Max. Bar Capacitymm42
Spindle Speed RangeRPM50-3000
Full Power Speed Rangemm-
Fanuc Torque (Cont.)mm71.6
Fanuc Torque upto (Max.)mm210
Siemens Torque (Cont.)mm71
Siemens Torque upto (Max.)mm144
Quill Diametermm70
Quill Strokemm85
No. of Station8
Max. Boring Bar Dia.mmØ 40
Tool Size (Cross - Section)mm25 x 25
Positioning Accuracymm0.010
Repeatabilitymm0.006
Dimensions (L X W X H)mm2450 x 1625 x 1950
Weight (Approx.)kg2800

Standard Accessories

  • Ball Type LM Guideways
  • Foot Switch
  • Tool Holders
  • 8 Station Bi Directional Turret
  • Hydraulic Chuck With Actuating Cylinder
  • Patrol Light

Optional Accessories

  • Auto Door
  • Stabilizer
  • Chip Conveyor
  • Hydraulic Collet Chuck
  • Bar Feed System
  • Steady Rest
  • All Possible Customization

Control System Accessories

  • RS-232 Serial Interface Port
  • Feed Rate Override
  • Manual Data Input
  • 2 Axis Simultaneous
  • Circular Interpolation
  • Thread Cutting Cycle
  • Electronic Hand Wheel
  • Tool Nose Radius Compensation
  • Constant Surface Speed Control
  • Part Programming Storage And Editing
