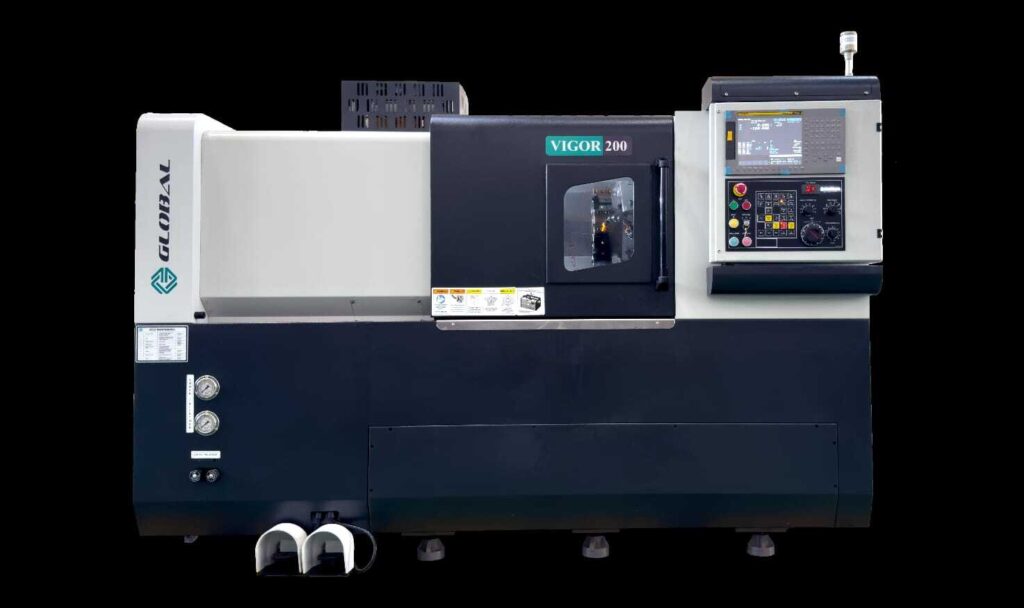

Vigor 200

Features

  • Ball Type Guideways
  • Ground Ballscrew with Double Nuts
  • FEM Analyzed Machine Structure
  • Operator Friendly Design
  • Vibration Free Structure
  • Elegant Look of Machine
Watch Video
Download Brochure
Ask for Information

Technical Specifications

Capacity
Swing Over Bedmm450
Std Turning Dia.mm200
Max. Turning Dia. With Limited Lengthmm350
Max. Turning Length (Std. Chuck Face to Tool Disk Face)mm500
Cross (X Axis) Travelmm185
Longitudinal (Z Axis) Travelmm500
Rapid (X & Z Axis)m/min25
Ball Screw (Z Axis)mm32 X 10
LM Guide (Z Axis)mm35
Ball Screw (X Axis)mm32 x 10
LM Guide (X Axis)mm35
Spindle Motor Power (30 Min./Cont) (Siemens)kW12/9
Spindle Motor Power (30 Min./Cont) (Fanuc)kW11/7.5
Spindle Boremm65
Spindle NoseA2-6
Chuck Sizemm200
Max. Bar Capacitymm50
Spindle Speed RangeRPM50-3000
Full Power Speed RangeRPM-
Fanuc Torque (Cont.)Nm71.6
Fanuc Torque upto (Max.)Nm210
Siemens Torque (Cont.)Nm85
Siemens Torque upto (Max.)Nm210
Quill Diametermm80
Quill Strokemm105
No. of Station8
Max. Boring Bar Dia.mmØ 40
Tool Size (Cross - Section)mm25 x 25
Positioning Accuracymm0.010
Repeatabilitymm0.006
Dimensions (L X W X H)mm2580 x 1590 x 1850
Weight (Approx.)kg3100

Standard Accessories

  • Ball Type LM Guideways
  • Foot Switch
  • Tool Holders
  • 8 Station Bi Directional Turret
  • Hydraulic Chuck With Actuating Cylinder
  • Patrol Light

Optional Accessories

  • Auto Door
  • Stabilizer
  • Chip Conveyor
  • Hydraulic Collet Chuck
  • Bar Feed System
  • Steady Rest
  • All Possible Customization

Control System Accessories

  • RS-232 Serial Interface Port
  • Feed Rate Override
  • Manual Data Input
  • 2 Axis Simultaneous
  • Circular Interpolation
  • Thread Cutting Cycle
  • Electronic Hand Wheel
  • Tool Nose Radius Compensation
  • Constant Surface Speed Control
  • Part Programming Storage And Editing
