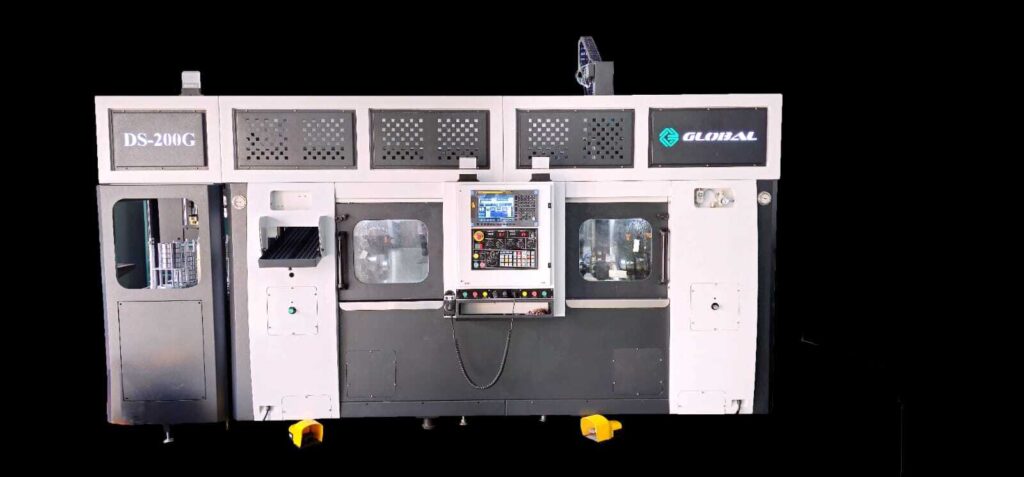

DS 200G
Features
- Twin spindle chucker with 3 axis gantry robot.
- Twin turret with 8-station on each.
- Un-manned loading to unloading operations.
- Auto feeder and change over station available.
- Job measuring System, Cleaning System & orientation unit available
- Hydraulic chucking on both spindles.
- Centralized & programmable lubrication.
- Electrical panel with A.C.
- Fully tooled up solution to meet customer need
Technical Specifications
Capacity (Basic Machine)
| Swing Over Bed | mm | 450 |
| Max. Turning Dia. | mm | 200 |
| Max. Turning Length | mm | 200 |
| Cross X1 & X2 Axis Travel | mm | 205 |
| Longitudinal Z1 & Z2 Axis Travel | mm | 300 |
| Rapid (X & Z Axis) | mm | 25 |
Capacity (Gantry Robot)
| Max. Clamping Dia. | mm | 150 |
| Max. Clamping Length | mm | 60 |
| Max. Part Weight (Each Component) | kg | 3 |
| Max. Speed Z Axis | mm | 100 |
| Max. Speed X Axis | m/min | 80 |
Slide
| Z-Axis Ball Screw | mm | Dia. 40 x 10 pitch |
| LM Guide Z-Axis | mm | 45 |
| X-Axis Ball Screw | mm | Dia. 40 x 10 pitch |
| LM Guide X-Axis | mm | 45 |
Spindle (2 Nos.)
| Spindle Motor Power (Cont. / 30min.) | kW | Siemens -9/12 Fanuc -7.5/11 |
| Spindle Bore | mm | 65 |
| Spindle Nose | - | A2~6 |
| Chuck Size OP10 | mm | 200 |
| Chuck Size OP20 | mm | 200 |
| Max. Bar Capacity | mm | 50 |
| Spindle Speed Range | rpm | 50-3500 |
| Full Power Speed Range | rpm | 1000-3500 |
Turret
| Max. Boring Bar Dia. | mm | ⌀40 mm |
| Axial Tool Size | mm | 25 X 25 |
Accuracy
| Positioning Accuracy | mm | 0.01 |
| Repeatability | mm | 0.006 |
Other Data
| Height | mm | 3700 |
| Floor Scale ( L x W ) | mm | 6200 X 2700 |
| Basic Machine Weight (Approx.) | kg | 5500 |
Standard Accessories
- AC variable speed spindle motor
- Automatic tool changer (24 tools)
- Basic Coolant system with chip tray
- Manual Pulse generator
- Centralized automatic lubrication
- Panel air Conditioner
- Air gun
- Spindle taper air blow
- Ring coolant around spindle
- Maintenance tool kit
- Rear Chip disposal
Optional Accessories
- Chip conveyer in lieu of chip tray
- High pressure coolant through spindle
- CNC rotary axis as 4th axis / indexing
- Voltage Stabilizer
- Edge fnder
- Optical Scale
- Automatic Front Door
- Chiller Unit
- Prob for tool offset and job offset
