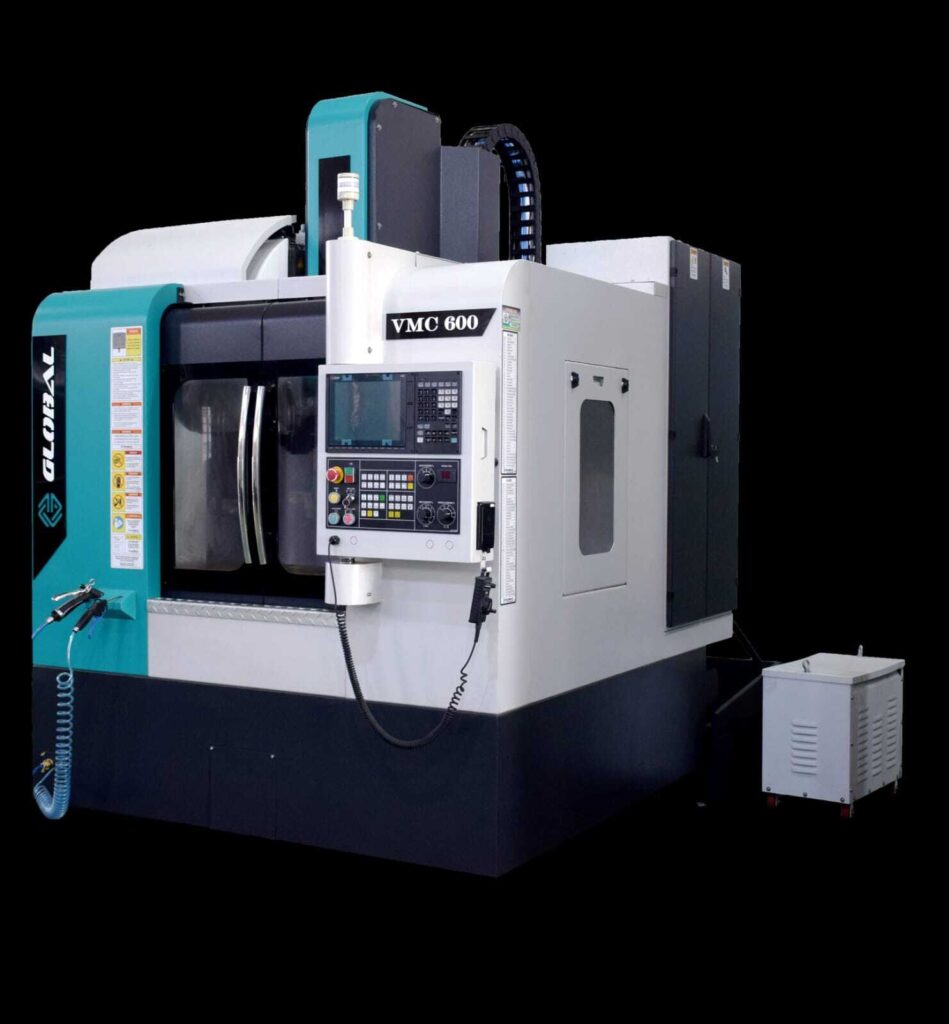

VMC 600
Features
- Broader Column Structure
- Higher stability with wide base
- Finite Element Analyzed Machine Structure
- Table with high load carrying capacity
- Roller Guide ways for higher load capacity
- Ergonomic Design
- Electronic Counter balance
- Manual & Auto Coolant System
- Centralized Automatic Lubrication
- Easy Chip Evacuation
Technical Specifications
Capacity
| X Axis | mm | 600 |
| Y Axis | mm | 400 |
| Z Axis | mm | 400 |
| Table Top to Spindle Face | mm | 100 to 500 |
| Distance between column | mm | - |
| Spindle Center – column front distance | mm | 480 |
Table
| Table Size | mm | 810 x 440 |
| Table Slot (No./Size/Pitch) | mm | 3/18/125 |
| Max. Load on table | kg | 400 |
| Floor to Table Top | mm | 900 |
Spindle Power Standard
| Max. Spindle Speed | RPM | 8000 |
| Spindle Nose | - | BBT-40 |
| Bearing Diameter | mm | 60 |
| Spindle Power (Cont./56–40 % rating) (Siemens) | kW | 7.5/5.5 |
| Spindle Power (Cont./30 min rating) (Fanuc) | kW | 7.5/5.5 |
| Spindle Power (Cont./30 min rating) (Mitsubishi) | kW | 7.5/5.5 |
| Fanuc Torque (Cont.) | Nm | 26 |
| Fanuc Torque upto (Max.) | Nm | 77 |
| Siemens Torque (Cont.) | Nm | 30 |
| Siemens Torque upto (Max.) | Nm | 60 |
FEED RATE
| Rapid Traverse (X-Y-Z) | m/min | 25 |
| Cutting Feed Rate (X-Y-Z) | m/min | 10 |
Tool Capacity
| Max. Tool Dia. (with adj. tool) | mm | 80 |
| Max. Tool Dia. (without Adj. Tool) | mm | 150 |
| Max. Tool Length | mm | 150 |
| Max. Tool Length | mm | 200 |
| Max. Tool Weight | kg | 8 |
Accuracy
| Positioning Accuracy (±) | mm | 0.010 |
| Repeatability (±) | mm | 0.005 |
Other Data
| Height | mm | 2600 |
| Floor Scale (W x L) | mm | 2725 x 1850 |
| Machine Weight (Approx.) | kg | 4000 |
Standard Accessories
- AC variable speed spindle motor
- Automatic tool changer (24 tools)
- Basic Coolant system with chip tray
- Manual Pulse generator
- Centralized automatic lubrication
- Panel air Conditioner
- Air gun
- Spindle taper air blow
- Ring coolant around spindle
- Maintenance tool kit
- Rear Chip disposal
Optional Accessories
- Chip conveyer in lieu of chip tray
- High pressure coolant through spindle
- CNC rotary axis as 4th axis / indexing
- Voltage Stabilizer
- Edge fnder
- Optical Scale
- Automatic Front Door
- Chiller Unit
- Prob for tool offset and job offset
